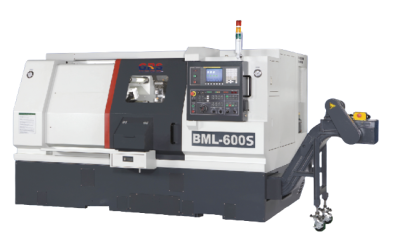

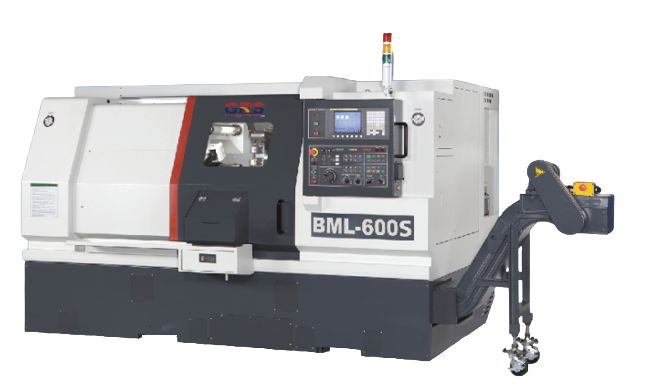

| ITEM | BML-500 | C-axis | ||
| Capacity | Swing over bed | Ø600 | ||
| Swing oversaddle | Ø450 | |||
| Distance between centers | STD:763（A2-6）;OPT：753（A2-8） | |||
| Max machining dia. | Ø420 | Ø340 | ||
| Max. machining length | STD: 560 (8″); OPT: 540(10″) | |||
| Slant angle of bed | 30° | |||
| Travels | X-axis | 230（210+20） | 225（170+55） | |
| Y-axis | – | |||
| Z-axis | 590(10”); 600(8”) | |||
| C-axis | – | 360°（0.001°） | ||
| W-axis | – | |||
| Spindle | Spindle speeds | STD:50-4500（A2-6）;OPT：50-3500（A2-8） | ||
| Spindle nose | STD:A2-6;OPT:A2-8 | |||
| Spindle bore dia. | STD:Ø62（A2-6）;OPT: Ø86（A2-8） | |||
| Front bearing inner dia. | STD:Ø100（A2-6）;OPT: Ø120（A2-8） | |||
| Draw.bar dia | STD:Ø52;OPT: Ø75 | |||
| Chuck | Chuck diameter | STD:8”;OPT:10”; | ||
| Turret | Type | STD: hydraulic;OPT: servo | VDI | Live-tooling |
| Station | STD:10;OPT:12 | STD:12 | ||
| Model | STD: LS-240:OPT: LS-240SV | TBMA200 | ||
| Square tool shank | 25 | 25 | ||
| Boring bar shank diameter | Ø40 | Ø40 | ||
| Iindexing time | LS-240: 1.4(8T),1.6(10T)，1.7(12T) LS-240SV:0.8 0.73 | 0.73 | ||
| Live-tooling | Spindle speeds | – | 50-4000 | |
| Feedrate | Rapid traverse | X:16 Z:20 | ||
| Tail stock | Type | Automatic | ||
| Quill diameter | Ø85 | |||
| Quill bore taper | MT-5 | |||
| Quill travel | 120 | |||
| Tailstock travel | 500 | |||
| Motors | Main spindle | STD: a30ip/6,000(15/18.5):OPT: a15/8000 (gear box) | ||
| Sub-spindle | – | |||
| Live-tool | – | a3/10,000(3.7/5.5) | ||
| X/Z-axis servo motor | X: a12 3.0;Z: a12 3.0 | |||
| hydraulic oil pump | 1.5 | |||
| Chip conveyor | 0.2 | |||
| Coolant pump | 0.8 | |||
| Accuracy | positioning | ±0.004 | ||
| Repeatability | ±0.003 | |||
| Power | Requirements | 380-415/220V26KVA | ||
| Machinesize | Height | 186 | ||
| Floor space (Lx W) | 401*214 | |||
| Packing (w/conveyor) | 383*212*212 | |||
| Net weight (w/conveyor) | 5430 | |||
| Gross weight (w/conveyor) | 5730 | |||
