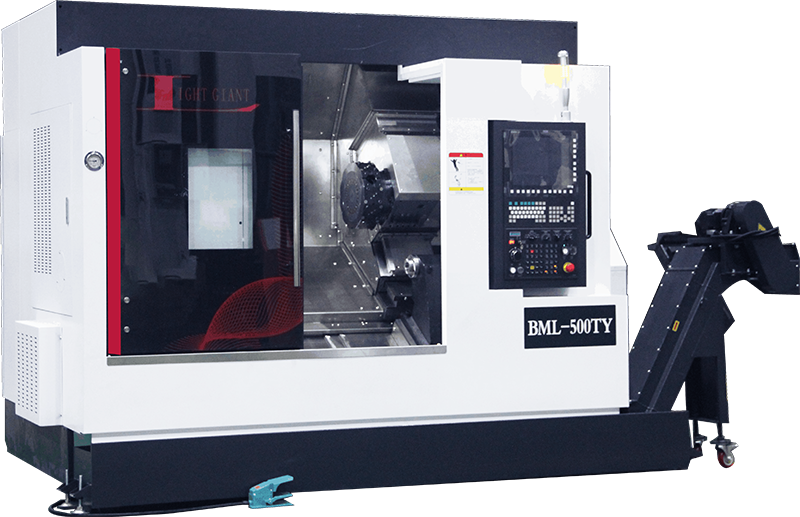

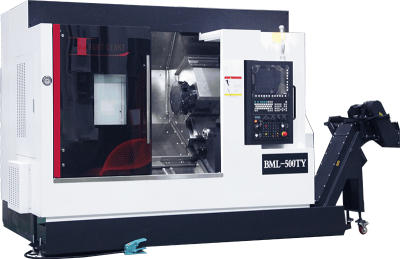

| ITEM | BML-500TY | |
| Capacity | Swing overbed | Ø635 |
| Swing over saddle | Ø420 | |
| Max.turning length | 520 | |
| Max.Turning diameter | Ø330 | |
| Top heart distance | 620 | |
| Travels | X axis travel | 240（220+20） |
| Y axis travel | 110（±55） | |
| Z axis maxtravel | 548 | |
| X axis motor | 3kw | |
| Y axis motor | 3kw | |
| Z axis motor | 3kw | |
| X axis rapid traverse | 20m/min | |
| Y axis rapidtraverse | 10m/min | |
| Z axis rapidtraverse | 20m/min | |
| W axis rapidtraverse | 15m/min | |
| Cs-axis | 0.001° | |
| Slant angle of bed | 30°+30° | |
| Spindle | Spindle nose | A2-6 |
| Spindle bore dia | Ø61 | |
| Draw bardia. | Ø51 | |
| Main spinde | 11/15kw | |
| Spindle speeds | 4500rpm | |
| Chuck size | 8” Hydraulic | |
| Turret | Model | MT-55 |
| Tool number | 12 | |
| Square tool handle | □25×□25 | |
| Boring tool holder | Ø40 | |
| Max.furthest tools time | 1.5sec | |
| B-axisspeed | 6000rpm | |
| B-axismotor | 3.7/5.5kw | |
| Accuracy | X- axisPositioning | ±0.004 |
| Y-axis Positioning | ±0.004 | |
| Z-axis Positioning | ±0.004 | |
| X-axisRepeatability | ±0.003 | |
| Y-axis Positioning | ±0.003 | |
| Z- axis Repeatability | ±0.003 | |
| Feedrate | Coolant pump | 0.8kw |
| Hydraulic oil pump | 2.25kw | |
| Other | L×W×H | 3700×1985×2250mm |
| Net weight | 4500kg | |
| Controller | FANUC 0i -TF | |
