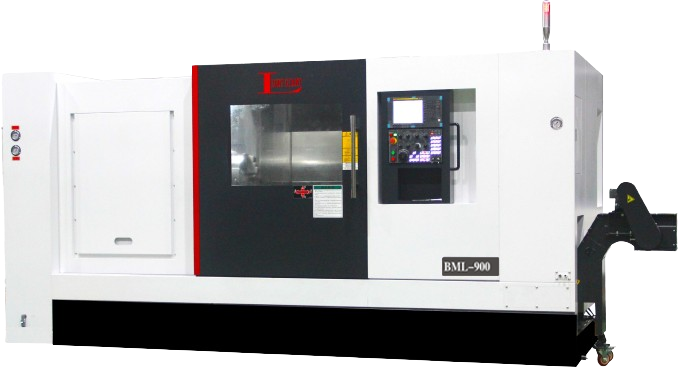

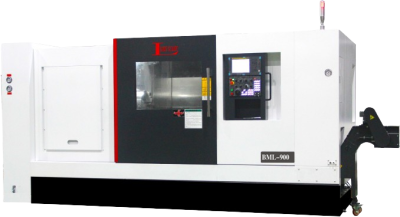

| ITEM | BML-900 | ||||
| Capacity | Max.turning length | 1100 | 1600 | 2100 | 3100 |
| Swing over bed | Ø950 | ||||
| Swing over saddle | Ø630 | ||||
| Max.Turning diameter | Ø610/Ø720 | ||||
| Travels | X axis max travel | 360+30 | |||
| Z axis max travel | 1100 | 1600 | 2100 | 3100 | |
| Z/X axis rapid traverse | 15/10 | 10/10 | |||
| X/Z-axis track | BOX Way | ||||
| X axis screw diameter | R40/P10 | ||||
| Z axis screw diameter | R50/P10 | ||||
| Spindle | Spindle nose | A2-11 | |||
| spindle bore dia./Draw.bar dia | Ø134/Ø116 | ||||
| Max. torque | 1020Nm | ||||
| Spindle drives | 变速箱 | ||||
| Spindle speeds | 2000rpm | ||||
| Chuck size | 15寸 | ||||
| Tailstock | Quill diameter | Ø 110 | Ø 110 | Ø 160 | Ø 160 |
| Tailstock travel | 950 | 1450 | 1950 | 2950 | |
| Quill bore taper | MT5 | ||||
| Quill travel | 120 | ||||
| Turret | Model | LS-250H | |||
| Tool number | 12 | ||||
| Square tool handle | 32 | ||||
| Boring tool holder | Ø 50 | ||||
| Indexing time | 1.3 | ||||
| Feedrate | Coolant pump | 1.0KW | |||
| Hydraulic oil pump | 2.25KW | ||||
| Main spinde | 15/18.5kw | ||||
| X axis feedrate | 3kw | ||||
| Z axis feedrate | 3kw | ||||
| Other | X- axis Positioning | 0.008 | |||
| Z- axis Positioning | 0.012 | 0.015 | 0.018 | 0.025 | |
| X-axis Repeatability | 0.006 | ||||
| Z-axis Repeatability | 0.008 | 0.010 | 0.015 | 0.02 | |
| Net weight | 11600 | 12600 | 14600 | 16600 | |
| L×W×H | 4550+900x2200x2180 | 5050+900x2200x2180 | 6050+900x2200x2180 | 7050+900x2200x2180 | |
| Controller | FANUC-0i-TF | ||||
