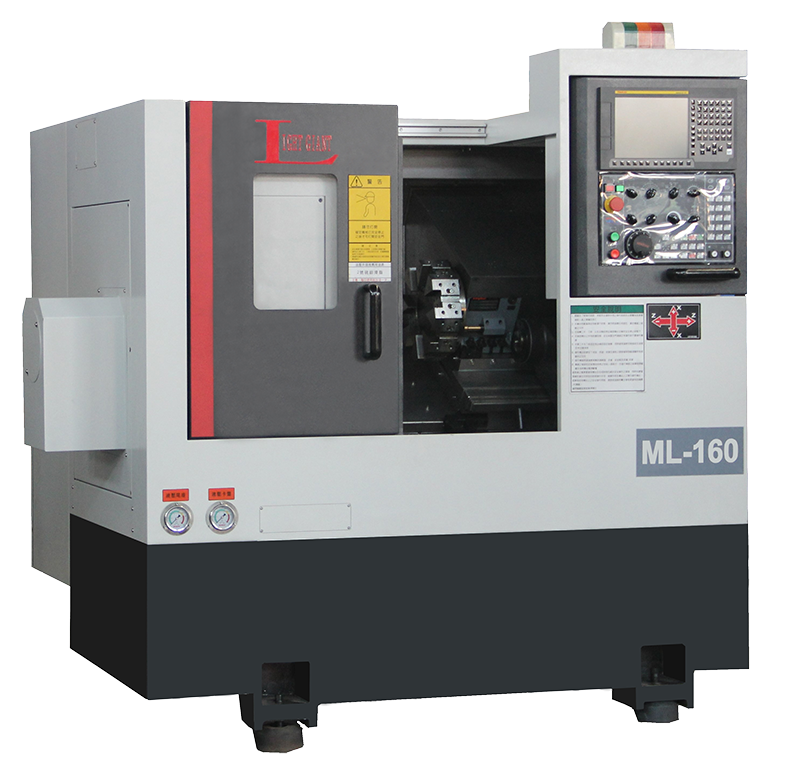

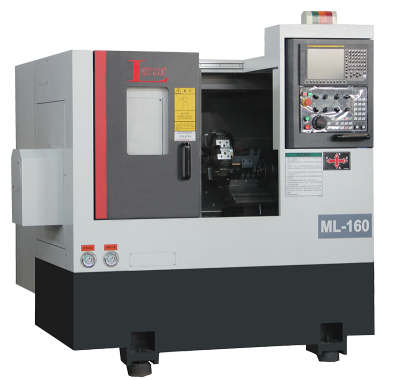

| MODEL | ML-160 | |
| Work Range | Max.swing | Ø450 |
| Swing over cross slide | Ø250 | |
| Max.turning length | 300 | |
| Max.turning diameter | Ø 250 | |
| Top heart distance | 360 | |
| Travels | X axis max.travel | 125+25 |
| Z axis max.travel | 325 | |
| X axis motor | B8/3000 | |
| Z axis motor | B8/3000 | |
| Z /Xaxis rapid traverse | 30m/min | |
| Positsoning(Z/X) | 0.007 | |
| Repeatability(Z/X) | 0.005 | |
| Machine body | 30° | |
| Spindle | Type of spindle nose | A2-5 |
| Through spindle hole | Ø55/Ø45 | |
| Spindle motor power | 7.5/11kw | |
| Spindle speed range | 6000rpm | |
| Chuck size | 6 Hydraulic | |
| Tailstock | Quill diameter | Ø60 |
| Tailstock travel | 195 | |
| Quill type | Movable apex | |
| Quill taper | MT-3 | |
| Quill stroke | 80 | |
| Turret | Type | Hydraulic |
| Tool capacity | 8 pcs | |
| Tool shank post | □25×□25 | |
| Boring diameter post | Ø32 | |
| Motors | Coolant motor | 950w |
| Tool motor | 180W | |
| Hydraulic motor | 2.25KW | |
| Power requirement | 15kw | |
| W×D×H | 1649×1413×1625 | |
| NetWEIGHT(APPROX) | 3270kg | |
| Controller | FANUC 0i-TF  | |
