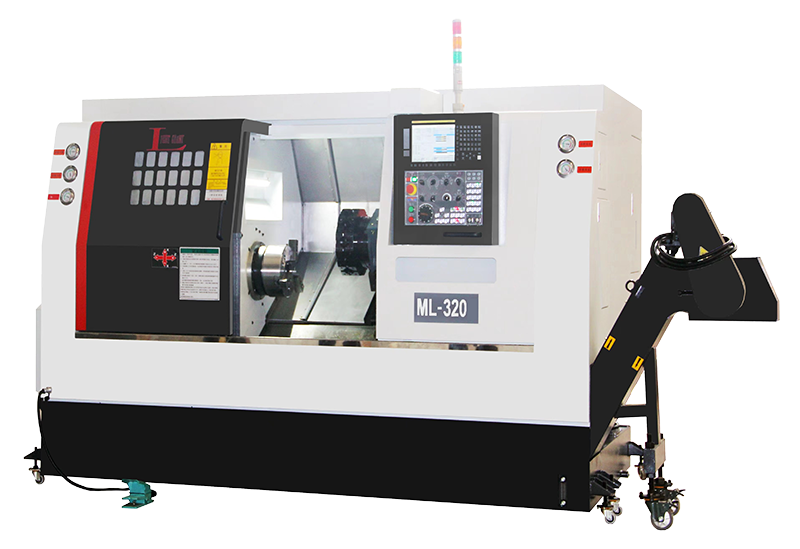

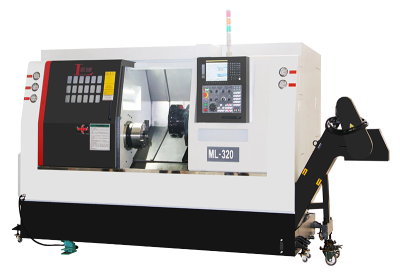

| MODEL | ML-320 | |
| Capacity | Max.swing | Ø650 |
| Swing over cross slide | Ø410 | |
| Max.turning length | 550 opt：1100 | |
| Max.turning diameter | Ø 500 | |
| Top heart distance | 628 | |
| Travel | X axis max.travel | 250+20 |
| Z axis max.travel | 600 | |
| X axis motor | B22/3000 | |
| Z axis motor | B22/3000 | |
| Z /Xaxis rapid traverse | 24m/min | |
| Positsoning(Z/X) | 0.007 | |
| Repeatability(Z/X) | 0.005 | |
| Machine body | 30° | |
| Spindle | Type of spindle nose | A2-8 |
| Through spindle hole | Ø86/Ø75 | |
| Spindle motor power | B30ip 15/18.5 kW | |
| Spindle speed range | 3500 rpm | |
| Chuck size | 10”Hydraulic | |
| Hydyaulic Tailstock | Quill diameter | Ø 85 |
| Tailstock travel | 1000 | |
| Quill type | Live | |
| Quill taper | MT-5 | |
| Quill stroke | 100 | |
| Turret | Type | Hydraulic |
| Tool capacity | 12 pac | |
| Tool shank post | □25×□25 | |
| Boring diameter post | Ø40 | |
| Feedrate | Coolant motor | 950W |
| Tool motor | 180W | |
| Hydraulic motor | 2.25KW | |
| Power requirement | 30KW | |
| W×D×H | 2878+800×1950×1845 | |
| NetWEIGHT(APPROX) | 5120kg | |
| Controller | FANUC 0i-TF | |
