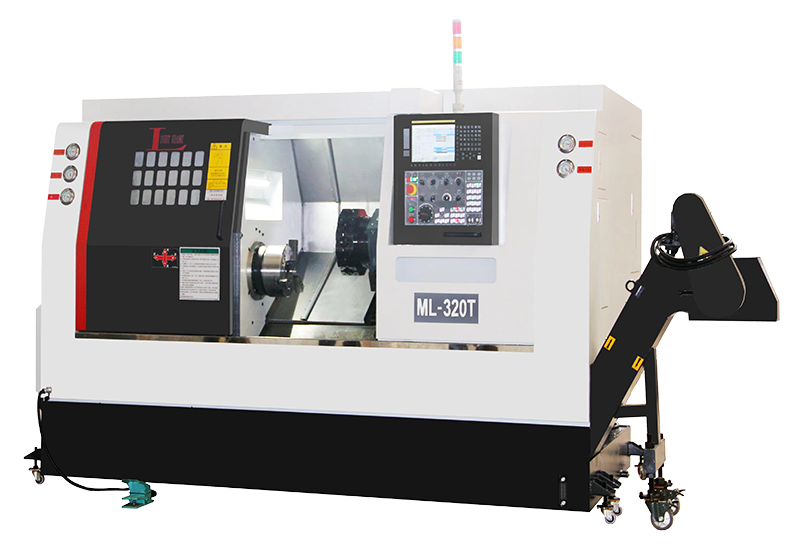

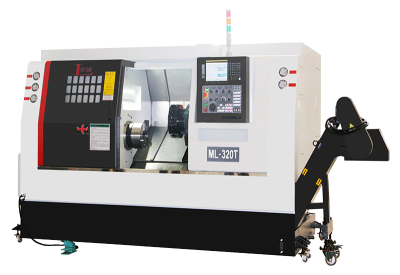

| MODEL | ML-320T | |
| Work Range | Max.swing | Ø 600 |
| Swing over cross slide | Ø410 | |
| Max.turning length | 527 OPT：1030 | |
| Max.turning diameter | Ø480 | |
| Top heart distance | 628 | |
| Travels | X axis max.travel | 240+35 |
| Z axis max.travel | 600 | |
| Y axis max.travel | —- | |
| C axis max.travel | 360°(0.001°) | |
| Machine body | X axis motor | α12/3000 |
| Z axis motor | α12/3000 | |
| Y axis motor | — | |
| Z /X/Yaxis rapid traverse | 24 m/min | |
| Positsoning(Z/X/Y) | ±0.004 | |
| Repeatability(Z/X) | ±0.002 | |
| Machine body | 30° | |
| Spindle | Type of spindle nose | STDA2-8；OPTA2-6 |
| Through spindle hole | Ø86/Ø75 | |
| Spindle motor power | 15/18.5kW | |
| Spindle speed range | 3500 rpm | |
| Chuck size | 10”Hydraulic | |
| Tailstock | Quill diameter | Ø 85 |
| Tailstock travel | 530 | |
| Quill type | Movable apex | |
| Quill taper | MT-5 | |
| Quill stroke | 100 | |
| Turret | Type | Power tool tower |
| Tool capacity | 12 | |
| Indexing type | Servo | |
| Tool holder | BMT-55(ER40) | |
| Max. speed range | 4000rpm | |
| Neighboring tools time | 0.15Sec | |
| Max.furthest tools time | 0.72Sec | |
| Repeatability | ±2″ | |
| Motors | Coolant motor | 900W |
| Tool motor | α3（3.7/5.5） | |
| Hydraulic motor | 2.25kw | |
| Other | Power requirement | 380V |
| W×D×H | 2878+800×1979 | |
| Net WEIGHT(APPROX) | 5500 kg | |
| Controller | FANUC0i-TF | |
