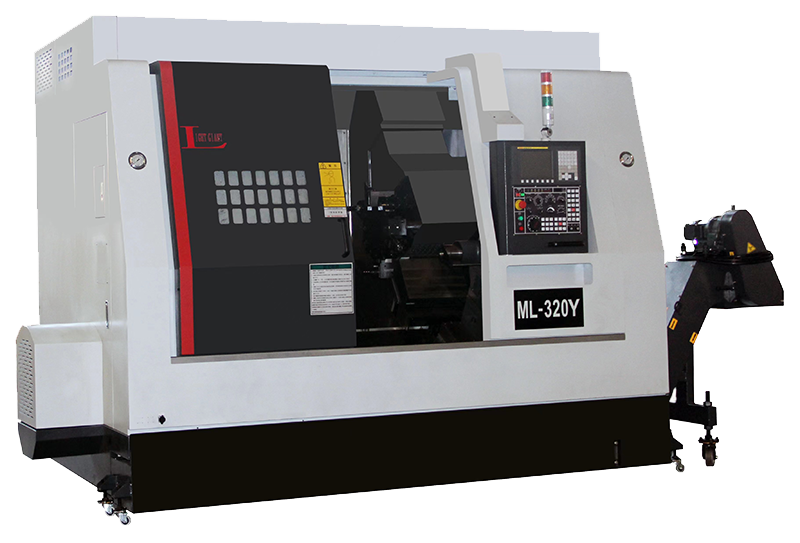

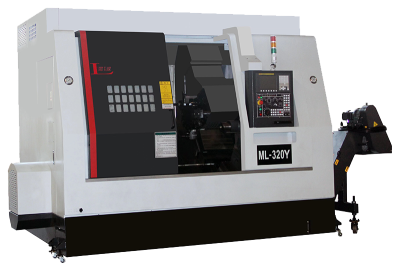

Máy tiện tuyến tính ML-320TY -

Project Model		ML-320Y
scope of work	Maximum rotation diameter of the bed	Ø600
	Maximum rotation diameter of bed saddle	Ø410
	Maximum processing length	537
	Maximum cutting diameter	Ø480
	Tip distance	628
trip	Maximum travel of X-axis	240+20
	Z-axis maximum stroke	600
	Y-axis maximum stroke	±62mm
	X-axis drive motor	Bis22/3000
	Y-axis drive motor	Bis22/3000
	Z-axis drive motor	Bis22/3000
	X/Z-axis rapid feed rate	24 m/min
	Y-axis rapid feed rate	15 m/min
	Cs axis	360°(0.001°)
	lathe bed	30°+30°
	X-axis screw diameter	Ø32P10
	Y-axis screw diameter	Ø32P10
	Z-axis screw diameter	Ø40P10
Spindle	Spindle nose end type	Standard A2-6
	Spindle hole diameter/pull rod hole diameter	Ø62/ Ø51
	Spindle Motor	biP30 15/18.5kw
	Spindle speeds	3500 rpm
	Chucak diameter	8″
Tailstock	Tailstock shaft diameter	Ø85
	Tailstock stroke	900
	Apical taper	MT-5
	Top center stroke	100
Knife tower	type	Power turret BMT-55
	Number of tools	12 pieces
	Square tool handle	□25×□25
	Boring tool holder	Ø40
	Tool change time	0.32sec
	Power turret motor	BiI3/12000-B 5.5kw
	Power milling head speed	4000rpm
motor	Cooling device motor	750w
motor	Oil pressure box motor	2.25kw
other	positioning accuracy	0.008
	repeatability	0.006
	Length×Width×Height	3878×1985×2126
	net weight	5220kg
	controller	Fanuc 0i-TF
