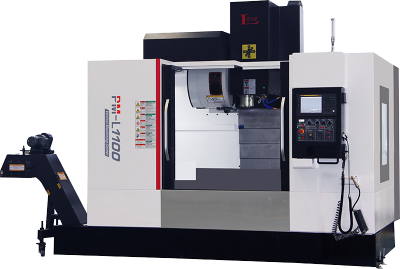

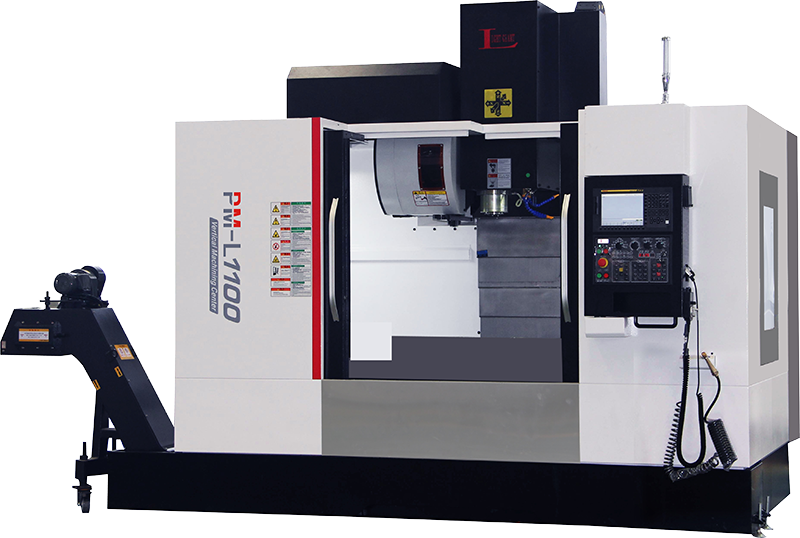

| MODEL | PM-LH1100 | |
| Travel | X axis travel | 1100 |
| Y axis travel | 650 | |
| Z axis travel | 650 | |
| Distance from spindle center to column | 702 | |
| Distance from spindle nose to table | 120~770 | |
| Table | Table area | 1200×600 |
| Max.load of table | 800kg | |
| T-slot | 18-5×125 | |
| Spindle | Spindle taper | BT40/150 |
| Spindle speed | 10000rpm | |
| Spindle drive | Belt type | |
| Spindle motor | 11/15kw | |
| Spindle cooling | lubricating grease | |
| Feed Drive | 3Axis motor output (X、Y、Z) | 3kw |
| Rapid traverse (X、Y axis) | 36/18m/min | |
| X axis rail specifications | Six sliders on two rails | |
| Y axis rail specifications | Six sliders on two rails | |
| Z axis rail specifications | Hard rail | |
| Minimum feed unit | 0.001 | |
| A.T.C | Magazine type | Knife arm type |
| Tool magazine capacity | 24 | |
| Full knife diameter | Ø 80 | |
| The diameter of the hollow blade | Ø 150 | |
| Longest tool | 250 | |
| Precision | Positioning | 0.007 |
| Repeatability | 0.006 | |
| Other | Power requirement | 25KVA |
| Floor space(L×W×H) | 3100×2350×2800 | |
| Air source requirements | 6.5kg | |
| Machine weight | About 6950kg | |
| Controller | FANUC 0i-TF | |
