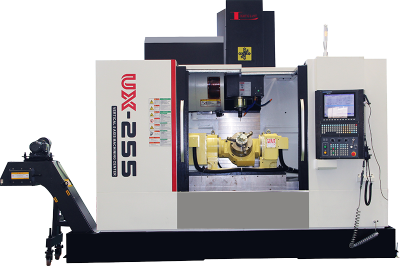

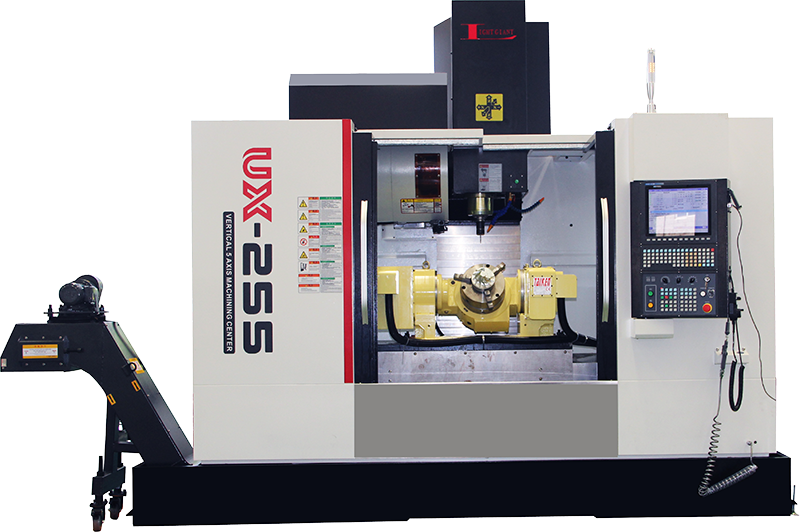

Trung tâm gia công năm trục UX255
Holine: 038 771 1248 và 038 2238088

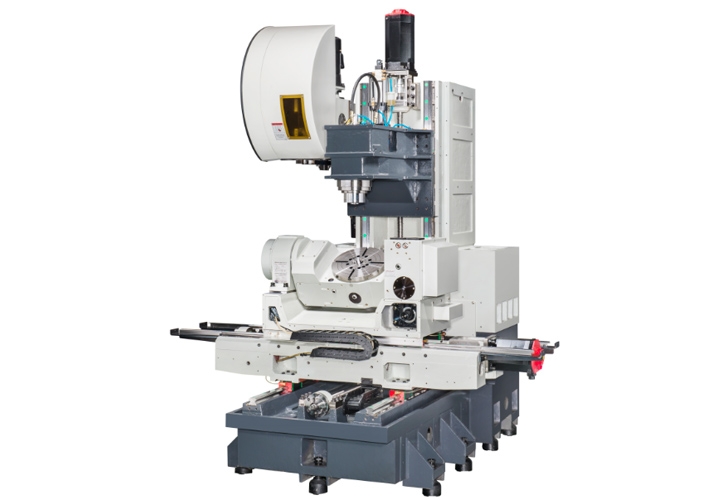

The high-speed internal spindle 12000/16000/24000rpm is equipped with an efficient oil cooler to reduce vibration and noise.

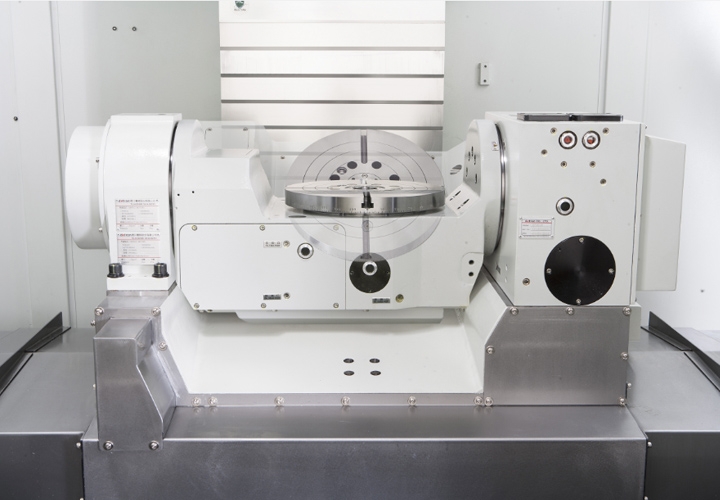

B-axis swing head (120 ° rotation), minimum separation angle 0.001 °
The built-in C-axis is paired with a DD motor, and a thermal protection system is installed to maintain the highest quality and reliability. Minimum segmentation angle 0.001 °
| Model | UX-255 | |
| Travel | X axis travel | 1100mm |
| Y axis travel | 600 mm | |
| Z axis travel | 600 mm | |
| B Tilt axis rotation range | +110°~-110° | |
| C-axis rotation range | 360°（0.001°） | |
| Distance from spindle center to column | 590 mm | |
| Distance from spindle nose to table | 290~610 mm | |
| Table | (L×W) | Ø 255 mm |
| T-slot | 12H7 | |
| Maximum load 0 ° horizontal | 100kg | |
| maximum payload0°~90° | 75kg | |
| Spindle | Spindle taper | BT/40 |
| Spindle speed | 10000rpm | |
| Spindle drive | Belt type | |
| Spindle motor | 11/15kw | |
| Spindle cooling | Spindle oil cooling | |
| Feedrate | Rapid traverse（X、Y axis） | 36 |
| Rapid traverse（Z axis） | 36 | |
| Rapid traverse（B axis） | 20 | |
| Rapid traverse（C axis） | 20 | |
| 3Axis slide | Roller line rail | |
| Cutting feed rate | 1~15000 | |
| Minimum feed unit | 0.0001 | |
| B/C-Axis motor | 2.3/1.3kw | |
| 3Axis motor output（X、Y、Z） | 4.4kw | |
| A.T.C | Magazine type | Knife arm type |
| Tool magazine capacity | 24 | |
| Max.tool diameter | Ø 78（150） | |
| Max.tool length | 250 | |
| Max.tool weight | 7kg | |
| Indexing time | 1.2″ | |
| 拉钉 | 40 | |
| Precision | Positioning | 0.004 |
| Repeatability | 0.003 | |
| Other | Power requirement | 25KVA |
| Air source | 6kg/cm² | |
| Floor space(L×W×H) | 3100×2350×2800 | |
| Machine weight | About5400kg | |
| Controller | HUST-B1-NX5A1V-M5 | |
