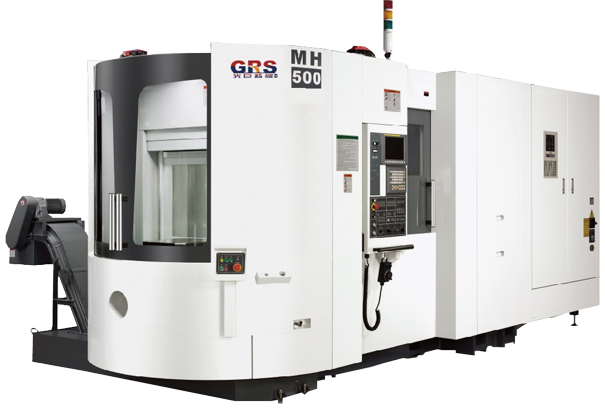

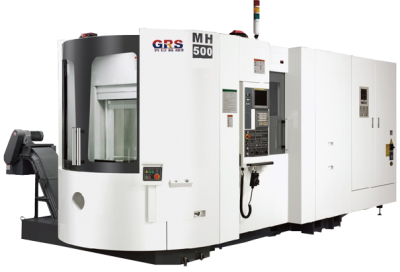

| ITEM | MH-500 | MH-500APC | |
| PALLET | Dimensions | 500×500 | |
| T-slot | 5-18×80 | 5-14-100 / 24*M16 | |
| Max. loading capacity | 800Kg | 600Kg | |
| B minimum indexing | 1° | 0.001°/1° | |
| Index repeatability | ±1″ | ±3″/ 2 | |
| Pallet capacity | 1 | 2 | |
| Max. speed of B-axis | 22 / 16 | ||
| Max diameter of workpiece | Ø800 | 750 / 750 | |
| TRAVEL RANGE | Max. travel range of X/Y/Z-axis | 800 / 600 / 785 | 800 / 700 / 650 |
| Distance from spindle center to table surface | 50~650 | 145~795 | |
| Distance from spindle nose to table center | 120~905 | 40~740 | |
| SPINDLE | Spindle taper | BT40 | BT40/150 |
| Spindle diameter | — | 150 | |
| Spindle speed | 8000rpm | 10000rpm | |
| FEEDRATE | Cutting feedrate of X/Y/Z-axis | 10000mm/min | |
| Rapid traverse speed of X/Y/Z-axis | 36m/min | ||
| Minimumsetting unit of X/Y/Z-axis | 0.001 | ||
| TOOL | Tool capacity | 24 | 40 |
| Tool selection | Random | ||
| Max. tool length | 250 | 300 | |
| Max. tool diamete | Ø 80 | ||
| Max. tool weight | 8kg | 7Kg | |
| Tool shank type | BT /40 | ||
| DRIVE MOTOR | Spindle motor | 15 / 18.5KW | BiI15/10000 |
| Servo motor of X/Y/Z/B-axis | Bis22/ Bis30B / Bis22Bis12/3000 | 3/ 3 / 3 / 1.8 KW | |
| Spindle recirculating lubrication motor | 370W | ||
| Centralized lubrication motor | 12W | ||
| Hydraulic motor | 2.2KW | 2.25 KW | |
| Coolant motor (for tools/chips) | 750W | 0.75KW | |
| Chip conveyor motor | 400w | 200w | |
| ATC motor | 0.56 KW | 0.373 KW | |
| ACCURACY | Positioning | ±0.005 | ±0.003/300 |
| Repeatability | ±0.005 | ±0.003/300 | |
| MISCELLANEOUS | P-P (pallet to pallet) | — | 12 |
| Outline dimension (L x Wx H) | 4700×2980×2540 | 4860×3100×2370mm | |
| Net weight | 8572kg | 10530 Kg | |
