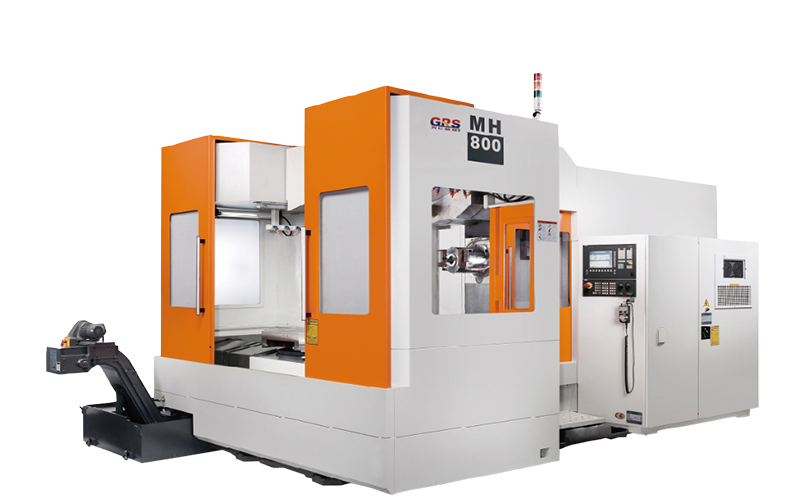

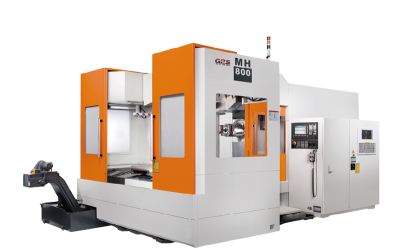

Trung tâm gia công ngang MH-800 (APC) -

MODE		MH-800	MH-800APC
Work Range	Dimensions	800×800	800×800
	T-slot	5-22×160	24*M16
	Max. loading capacity	2000Kg	2000Kg
	B minimum indexing	1° (Opt 0.001)	1° or 0.001°
	Pallet capacity	1	2
travel	Max. travel range of X/Y/Z-axis	1250 / 900 / 1050	1400 /1000 /1100
	Distance from spindle center to table surface	40～940	105～1105
	Distance from spindle nose to table center	200～1250	135～1235
spindle	Spindle taper	BT50	BT50/190
spindle	Spindle speed	4000 (Belt type1:2)	6000rpm
feedrate	Cutting feedrate	1～10000mm/min	15000mm/min
	Minimumsetting unit of X/Y/Z-axis	24m/min	36m/min
	Minimumsetting unit of X/Y/Z-axis	0.001	0.001
tool	Tool capacity	24	40
	Tool selection	arbitrarily	arbitrarily
	Max. tool dia. x length	Ø 125×350	Ф125-250×400
	Max. tool weight	15Kg	12-25KG
	Tool shank type	BT 50	BT /50
Drive motor	Spindle motor	15 / 18.5KW	18.5 / 22KW
	Servo motor of X/Y/Z/B-axis	Bis30/ Bis30B / Bis30/Bis12/3000	7/ 7 / 7 / 4.5 KW
	Spindle recirculating lubrication motor	370W	370W
	Centralized lubrication system	12W	12W
	Hydraulic motor	2.2KW	2.25 KW
	Coolant motor (for tools/chips)	750W	0.75KW
	Chip conveyor motor	400w	200w
	ATC motor	0.56 KW	0.373 KW
accuracy	Positioning	±0.005	0.01
accuracy	Repeatability	±0.005	0.008
Machinesize	Outline dimension	3400×4800×3200	4000×3300×3200mm
Machinesize	Net weight	13400 Kg	13000 Kg
