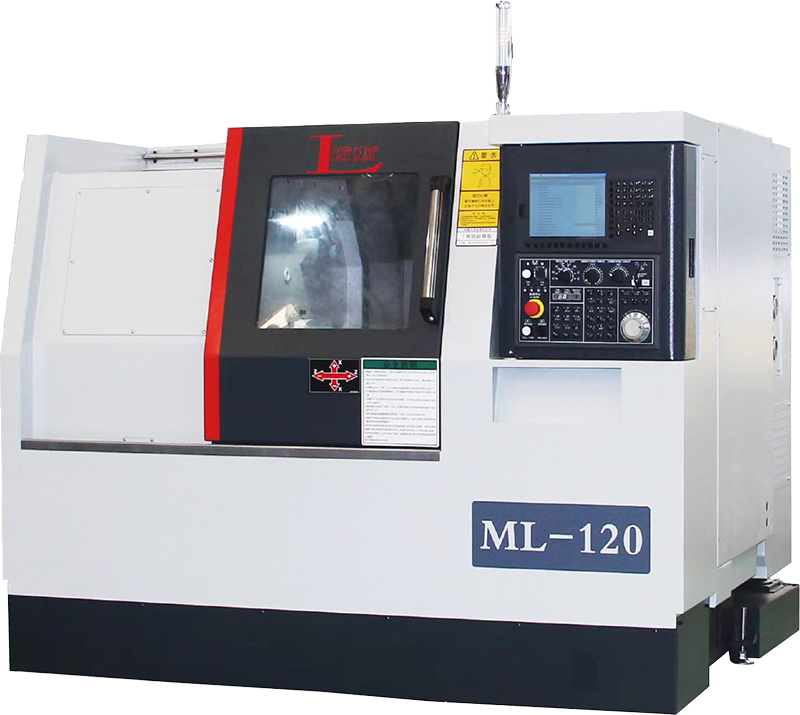

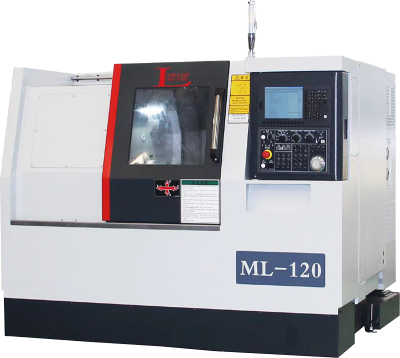

| MODEL | ML-120 | |||
| Work Range | Max.swing | Ø500mm | ||
| Maximum rotating diameter of work table | Ø119mm | |||
| Effective machining length | 120/400mm | |||
| Maximum cutting diameter | Plate of class | Ø300 mm | ||
| axial | Ø120mm | |||
| Travels | X axis max.travel | 700mm | 350mm | |
| Z axis max.travel | 400mm | 400mm | ||
| X axis motor | bis8/3000 | |||
| Z axis motor | bis8/3000 | |||
| X axis rapid traverse | 30m/min | |||
| Zaxis rapid traverse | 30m/min | |||
| X axis track width | 35#Roller linear guide | |||
| Z axis track width | 35#Roller linear guide | |||
| Machine body | 45° | |||
| Spindle | Type of spindle nose | A2-5/OPTA2-6 | ||
| Diameter of the main shaft through hole | Ø56 mm | |||
| Diameter can be passed through the bar | Ø45 mm | |||
| Spindle motor power | 7.5/11kw | |||
| Maximum spindle speed | 6000 rpm | |||
| Chuck size | 6”Hydraulic | |||
| Turret | Type | Row cutter | Hydraulic pressure | |
| Size of work table | 230×680 | — | ||
| The number of | 8 | 8 | ||
| Outer diameter knife square | □25×□25 | □25×□25 | ||
| Diameter of inner hole | Ø 32 | Ø 32 | ||
| Accuracy | Positsoning(X) | ±0.004 | ||
| Positsoning(Z) | ±0.003 | |||
| Repeatability(X) | ±0.003 | |||
| Repeatability(Z) | ±0.003 | |||
| Live Tool | Coolant motor | 450w | ||
| Hydraulic motor | 1P | |||
| Other | W×D×H | 2200×1360×1600 | ||
| NetWEIGHT(APPROX) | 3700kg | |||
| Controller | FANUC0i-TF | |||
